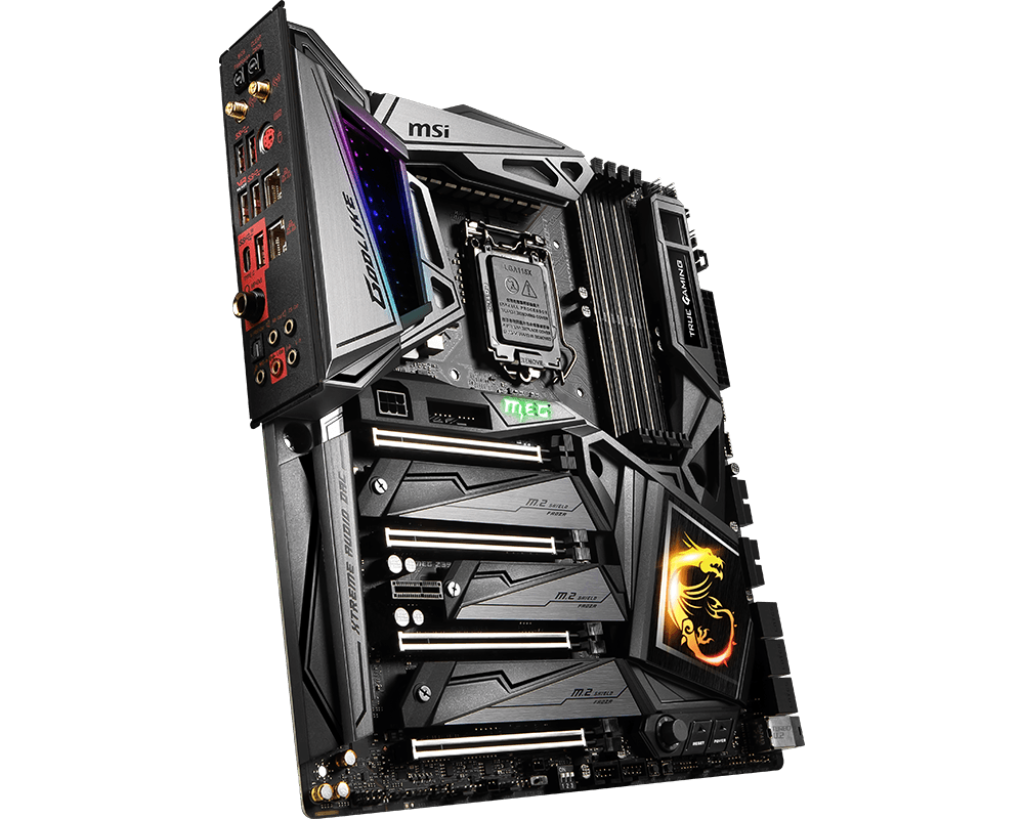

MSI MEG Z390 GODLIKE

MSI MEG Z390 GODLIKE

18,700.00 บาท

PROCESSOR

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® Z390 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz1
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to Compatibility for more information on compatible memory

See supported memory

SLOTS

  • 4 x PCIe 3.0 x16 slots1
  • 1 x PCIe 3.0 x1 slot
  1. Please refer to page 31 for details

MULTI-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 4-Way AMD CrossFire™ Technology

STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 3 x M.2 slots (Key M)1
    • M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
  • 1 x U.2 port2
    • Supports PCIe 3.0 x4 NVMe storage
  1. M.2_2 slot, U.2 port and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

  • 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 2 Type-C internal connectors)
  • 4 x USB 2.0 (High-speed USB) ports through the internal USB connectors

ASMedia® ASM1042 Chipset

  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

ASMedia® ASM1074 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

AUDIO

2 x Realtek® ALC1220 Codecs

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

ESS® E9018 Codec

  • Supports 6.3mm Gold-plated stereo headphone out

LAN

  • 2 x KillerTM E2500 Gigabit LAN controller

WIRELESS

Killer™ 1550 Chipset

  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports Wi-Fi 2x2 802.11 AC
  • Supports Bluetooth® 4.1, 3.0+HS

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x 6-pin ATX PCIe power connector
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 slots (M-Key)
  • 1 x U.2 port
  • 2 x USB 3.1 Gen2 Type-C ports
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 8 x 4-pin system fan connectors
  • 1 x 3-pin Water Flow connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 2 x 2-pin Thermal Sensors connectors
  • 1 x 4-pin RGB LED connector
  • 2 x 3-pin RAINBOW LED connectors
  • 1 x 3-pin CORSAIR LED connector

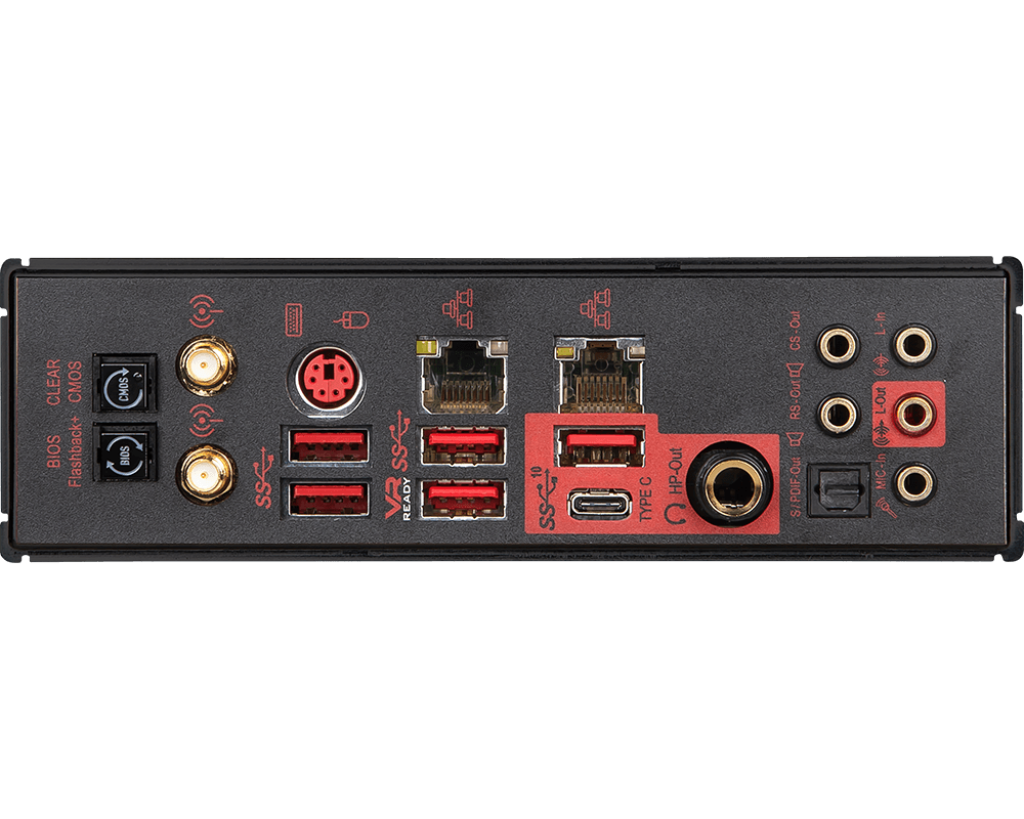

BACK PANEL PORTS

  1. Clear CMOS Button
  2. Wi-Fi /Bluetooth Antenna Connectors
  3. PS/2 GAMING Device Port
  4. Double Killer™ E2500 Gigabit LAN
  5. HD Audio Connectors
  6. BIOS FLASHBACK+ Button
  7. USB 3.1 Gen1 Ports
  8. USB 3.1 Gen2 Ports
  9. USB 3.1 Gen2 Ports Type-A+C
  10. 6.3mm headphone
  11. Optical S/PDIF-Out

MSI MEG Z390 GODLIKE back panel ports

DIMENSIONS

  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MSI MEG Z390 GODLIKE box content
